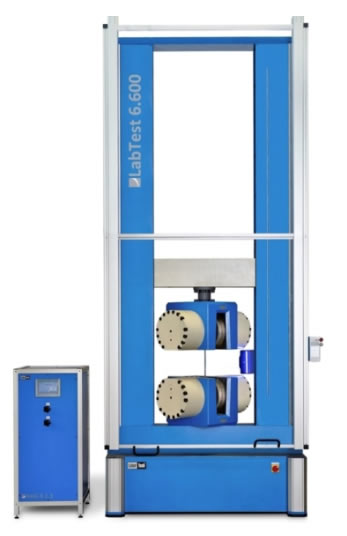

Electromechanical Testing Machines (Vertical Structure)



---





The E3 Series electromechanical testing machines, featuring floor-standing designs with two or four columns and capacities of up to 600 kN, are suitable for both research and development (R&D) and standard quality control in laboratories and industrial processes.

Combined with a wide range of accessories, these machines can be used safely and efficiently to perform tensile, compression, bending, shear, and torsion tests on materials and products such as plastics, metals, composites, paper, polyurethanes, and more. Models are available in capacities of 100 kN, 200–250 kN, 300 kN, 400 kN, 500 kN, and 600 kN.



E.3 SERIES FEATURES



• Robust vertical frame design with high rigidity, mechanical strength, and durability, featuring an integrated linear guide system, ideal for off-axis loading.

1. • Exceptionally high stiffness and mechanical resistance combined with a high level of ergonomics.
   • Quiet and precise AC servo drive with low noise and high resolution, with capability for force and position closed-loop control.
   • Machines comply with all applicable CE directives for machinery and equipment and operate according to the latest safety functions in accordance with EN ISO 13850:2015.
   • Automatic sensor identification operating within accuracy classes according to EN ISO 7500-1 and ASTM E4, with linearization capability.
   • Controlled by EDCi series measurement and control electronics with a sampling rate of 2.5 or 10 kHz and an analog signal resolution of ±250,000 divisions (20 ms).
   • Comprehensive test evaluation and management through Test&Motion material testing software.
   • Expandable with protective covers, safety barriers, and additional accessories.

 .

 .

---
