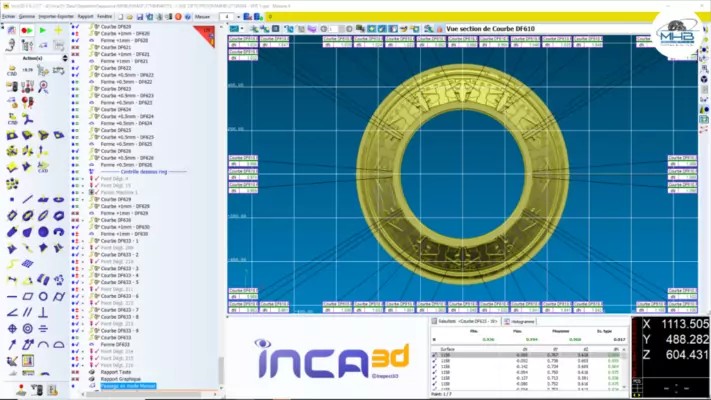

INCA 3D – CMM Metrology Software



---

Complete solution for your 3D measuring machines



Modern technology makes measurement a significant contribution to reducing costs and increasing quality.
The effectiveness of these attributes is further enhanced by software that is easy to operate and, at the same time, capable of solving complex measurement tasks.

.

Summary of our software:

• User-friendly desktop with modular structure
• Measurement of geometry and free-form surfaces in a single measurement program
• Manual, CNC, connected, offline, N-Plex operation modes

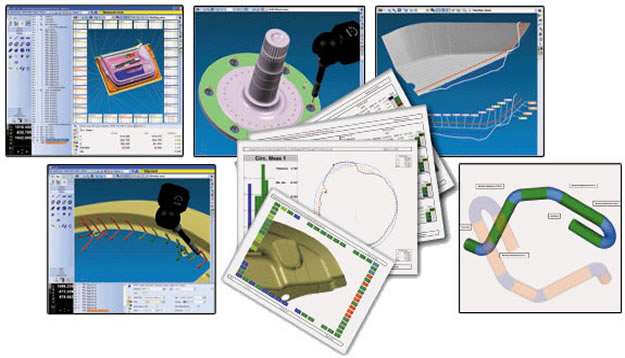

• Graphical programming and visualization of different measurement steps
• Labeling and report editor for customized reports
• Statistical evaluation and form & position analysis
• Large number of individually configurable output formats
• Touch probing and scanning systems
• Tool changers, rotary units, continuous rotation adjustment, rotary tables
• Connection with measurement devices (CMM machines, measuring arms, laser trackers, etc.)
• DMIS I++ compatibility
• Milling, drilling, marking, digitizing
• Special functions: pallet measurement, programming functions, tube measurement program







Ideal for applications in models, patterns, tool manufacturing, sheet metal, free-form surfaces, aerospace, automotive, and any other demanding inspection environment.



• • Manual systems
  • DCC (Direct Computer Control)
  • Articulated arms
  • Non-contact probes
  • Laser trackers
  • Photogrammetry systems

• • Certified mathematical calculation (PTB)
  • GD&T according to ISO 1101
  • Intuitive feature recognition
  • Automatic feature detection
  • Relative measurement for parts with large deviations (e.g., sheet metal and assemblies)
  • Bidirectional DME I++ interface (SERVER and CLIENT), DMIS I++
  • Intuitive interface combining CAD tools, 3D point clouds, scanning, milling, analysis, online/offline operation in a unified parametric environment



INCA3D DMIS



• • Native engine with direct interpretation
  • Compatible with versions 4.0 to 5.0, including high-level extensions and multiplex support
  • Online and offline editing of existing files
  • Syntax highlighting and error detection
  • Real-time generation of DMIS program and DMO output



Compatible INCA3D System Operation



• • Touch, scanning, and non-contact probes
  • Head changer and orientable probe systems
  • Rotary tables (Renishaw, MORA, Zeiss, etc.)
  • Computer-Aided Accuracy (CAA) for CMM systems
  • Temperature compensation for parts and CMM structures
  • Up to 5 arms in real time via TCP/IP
  • Collision prediction and prevention
  • Automatic synchronization

INCA3D Operator Features



• • Intuitive interface with customizable user levels (administrator, user, etc.)
  • Drag & drop creation of multiple operations
  • External program calls for process efficiency (load/unload operations, part rejection, alarms, stops, etc.)
  • Error prevention: auto-save, backup management, diagnostics, double verification of sensitive actions
  • Context-sensitive online help and automatic internet information service



INCA3D CAD Viewer



• • CAD interfaces: CATIA (FD&T management), UG, PRO-E, IGES, VDA, etc.
  • CAD tools: feature info, creation, mirror, scaling, reduction, etc.
  • Virtual CMM and probe visualization
  • Real-time label visualization and editing (filters, libraries, formats)
  • Extensive deviation visualization (arrows, discs, color mapping, etc.)



INCA3D Surface Module



• • CAD file comparison
  • Measurement of surfaces, edges, sections, curves, slopes, and spaces
  • Scanning of unknown shapes (scanning and/or trigger probe)
  • Point cloud processing



INCA3D Graphical Programming



• • Online and offline modes
  • Generation of alignments, sections, surfaces, curves, and geometry measurement
  • Automatic measurement path generation
  • Collision detection in offline programming and online execution



Alineaciones INCA3D



• Todas las alineaciones geométricas. Alineación iterativa de superficies.
• Alineación CAD con clic y sonda. Alineación de nube de puntos.
• Alineaciones avanzadas complejas, RPS, con mezcla de elementos geométricos y de superficie
• Optimización de medidas con funciones de mejor ajuste para minimizar las desviaciones



INCA3D Alignments



• • All geometric alignments
  • Iterative surface alignment
  • CAD alignment via click and probe
  • Point cloud alignment
  • Advanced alignments (RPS, hybrid geometric-surface combinations)
  • Measurement optimization using best-fit functions to minimize deviations





INCA3D is a registered trademark of Inspect 3D. Inspect3D reserves the right to modify specifications without prior notice.
