EDX3600H - X-ray Fluorescence Spectrometers
Jiangsu Skyray Instrument Inc. specializes in high-performance X-ray fluorescence spectrometers in the world.

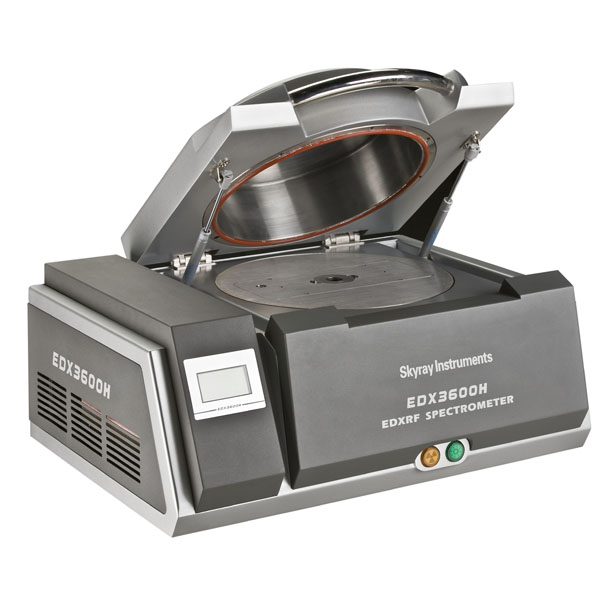

EDX3600H, desktop, non-halogen analysis spectrometer, introduced in 2009, is a high-performance and high-tech halogen testing instrument.
The technology, which adopts the world's leading non-halogen analysis technology, is equipped with the best intelligent vacuum system for non-halogen testing and uses low-energy X-ray to excite the light element, thus solving the problem of chlorine and bromine testing.
The instrument can detect any product containing hazardous halogen substances.
In addition, it can be used in all RoHS elements and analysis. The instrument is multifunctional and can meet the latest international standard.
Technical specifications:
- Measurable elements: Na to U.
Element content: 1ppm—99.99%
Simultaneous analysis capacity: Simultaneous analysis of 24 elements.
Plating thickness: up to 0.005um each layer; It is capable of analyzing plates with more than 3 layers.
Analysis accuracy: 0.05%
Measuring time: 60s-200s
Energy resolution: （150±5）eV
Tube voltage: 5KV-50KV
Tube current: 50uA-1000uA
Sample forms: powder, solid, and liquid.
